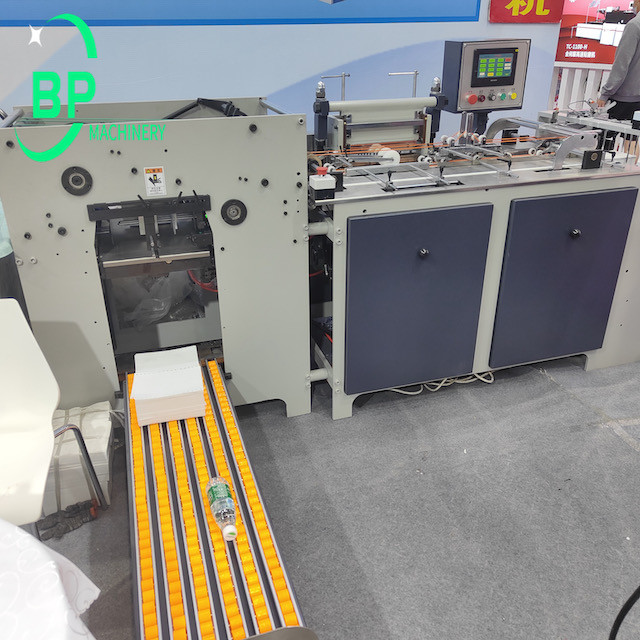

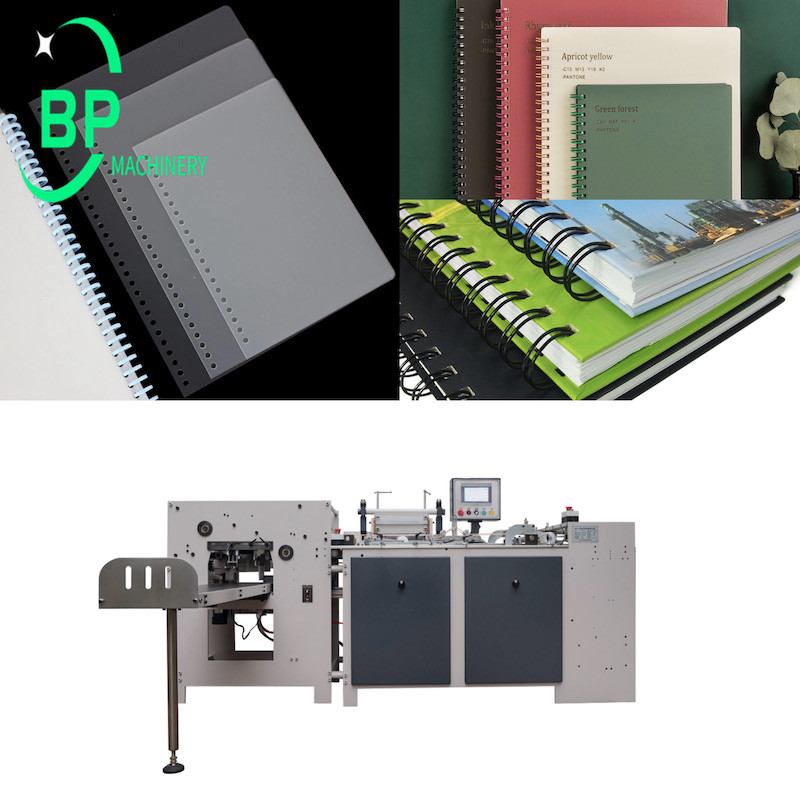

Automatic wire o ,loose leaf ,spiral notebook hole punching machine
Description:
APM320 automatic hole punching machine is used for notebook ,dairy ,sketch book ,PP sheets hole punching ,widely used for print house produce wire o notebook ,twin ring sketch book ,spiral notebook ,pocket double wire notebook .
Machine can do min size A7 (pocket notebook ) and max A4 size notebook ,with non stop working method it brings quick and efficiency ,help print house reduce labor cost . Now this machine already been popular used in notebook as its affordable price .
Technical data :
| Max.sheet | 310x310 mm (A4) |
| Min.sheet | 90mm x 70mm (A7) |
| Max punching thickness | 2.5mm for cover ,paper 2mm thickness per time |
| Weight of paper | 60 - 250 gsm |
| Punching speed | Up to 7200 punch times /hour |
| Power | 3PH 380V 50HZ(other voltage on request) |
| Main motor power | 1.5KW |
| Dimension | 3100 x 2100 x 1400 mm |
Advantages:
1 .Already be No 1 notebook hole punching machine install in China notebook market
2. Compare other size ,price cheaper but stable tested
3. Good structure make it do paper punching very stable and operate very easy .
4. Stable working and affordable price
5.Non stop ,1 operator enough to feeding paper and do finished paper collecting
Structure indroce :

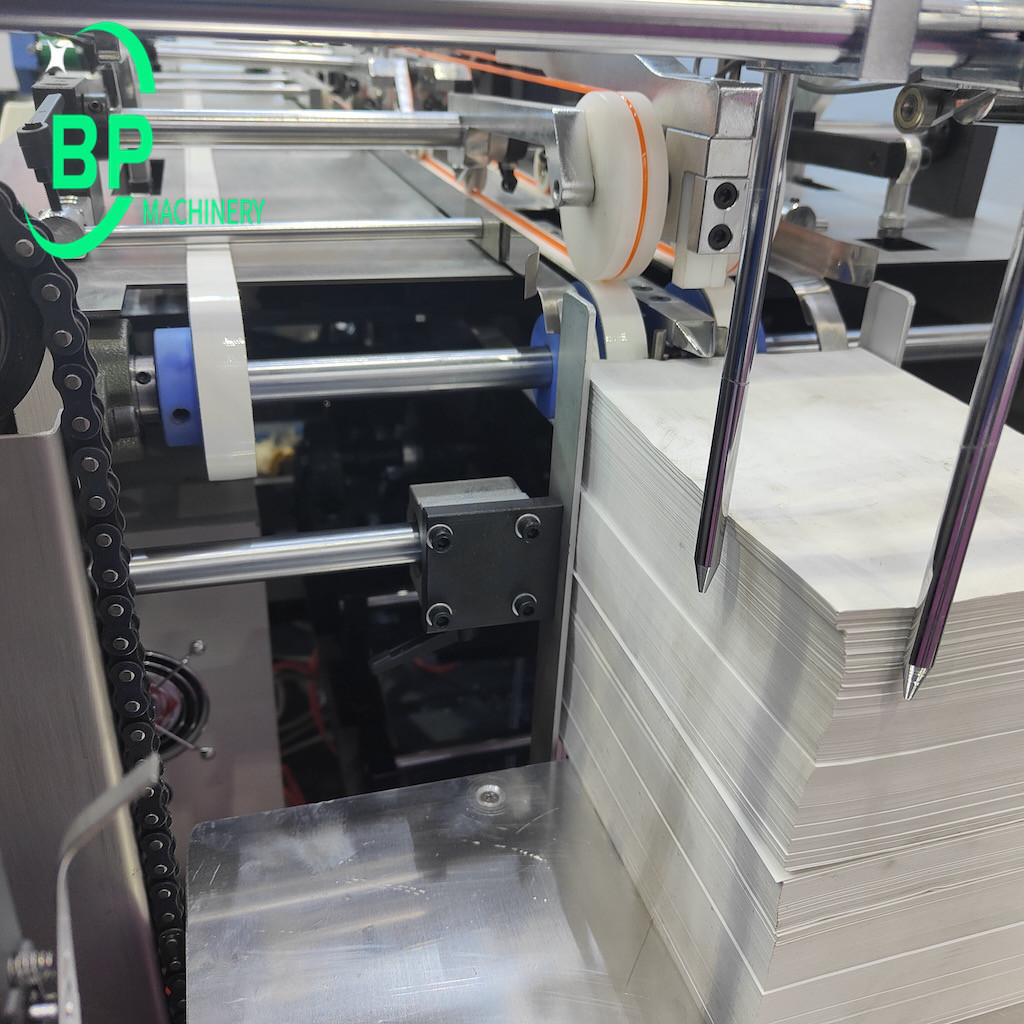

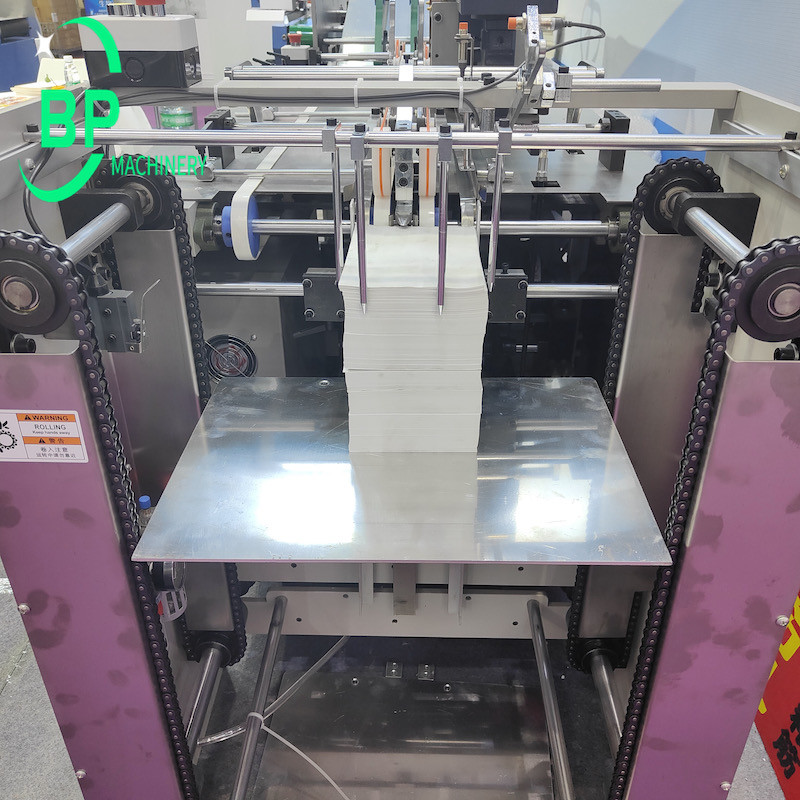

1 .Feeding paper part ,max could have 600 mm paper feeding height

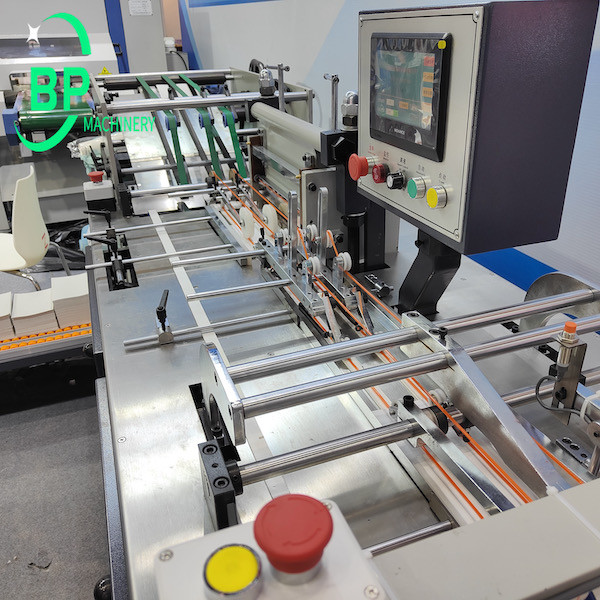

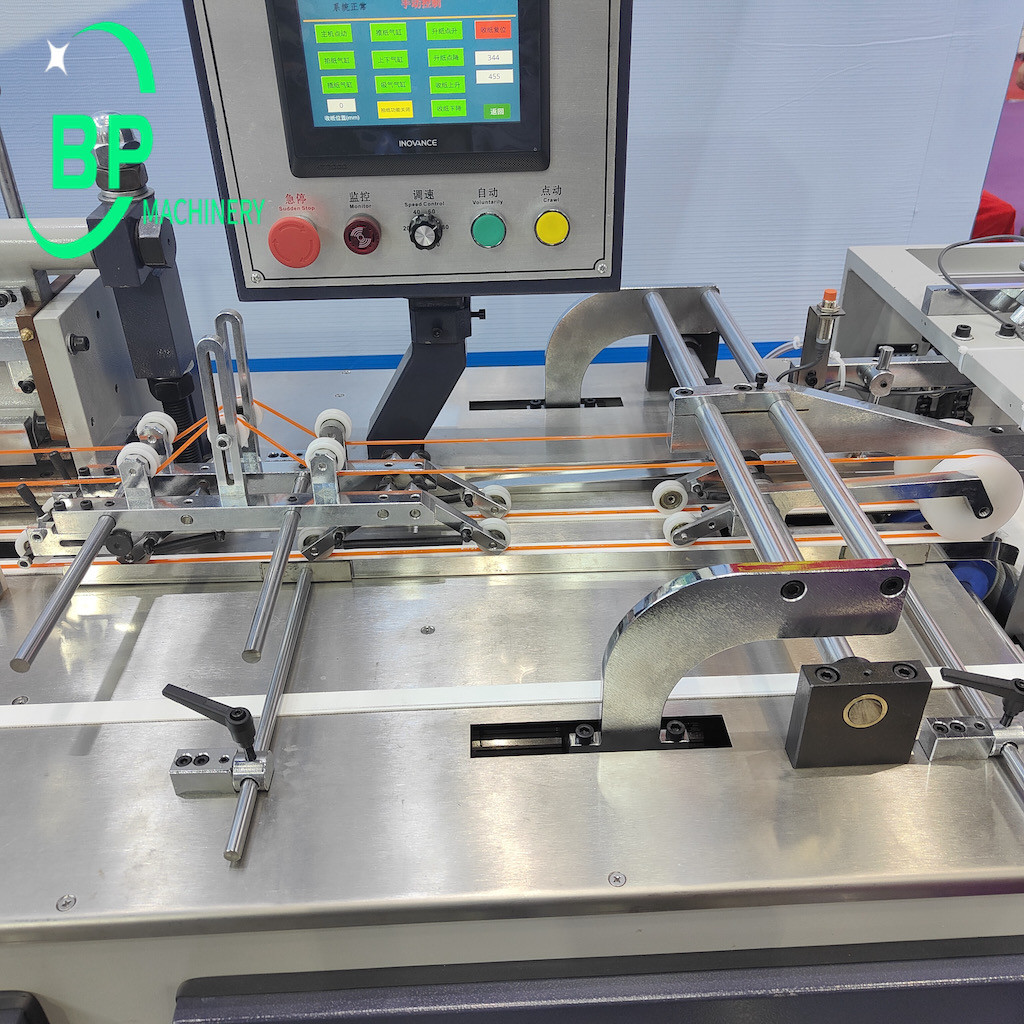

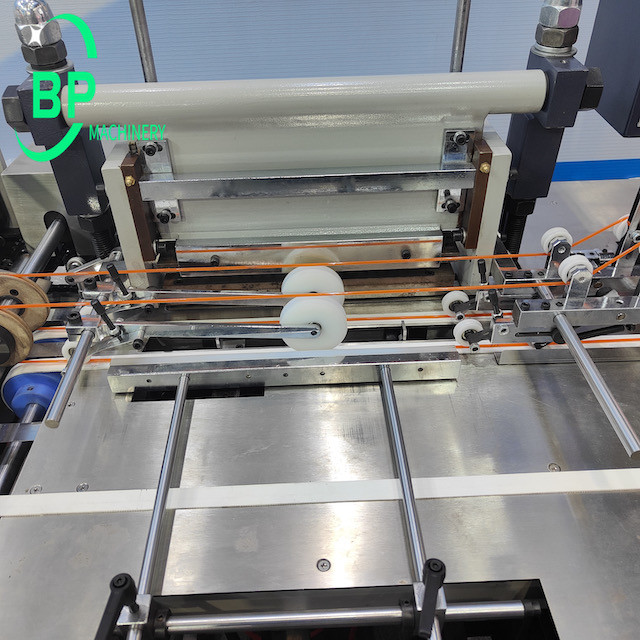

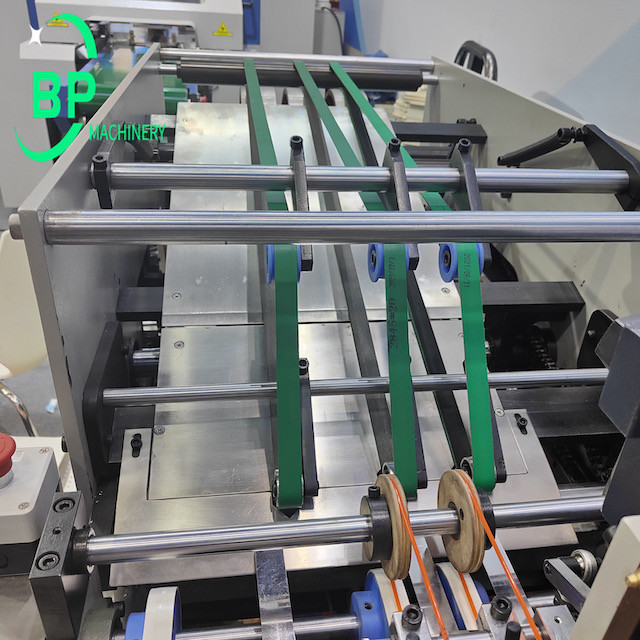

2 . Deliver paper part ,with quality belt deliver and punching tool in good position make it working very stable .

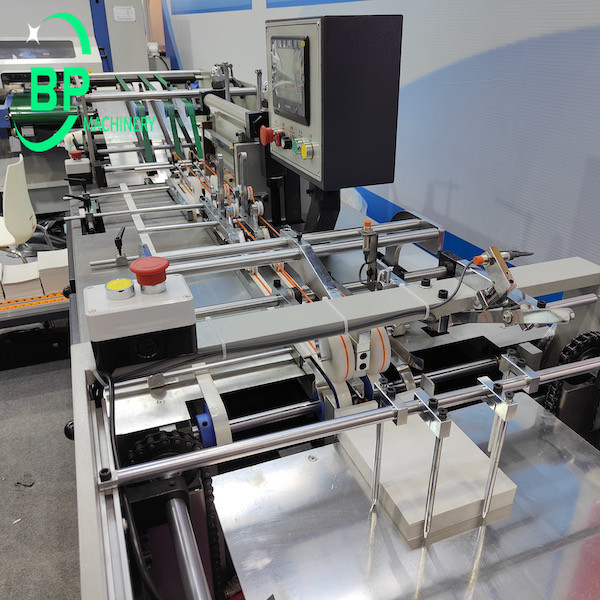

3. Collecting paper position ,for PP ,cover feeding without rolling device passing ,for paper with rolling device deliver .
For paper collecting and deliver it have some method (1 pile by 1 pile )
Mould choose
Wire o calendar notebook ,spiral notebook hole size choose | Hole size | Appearance | punch tool choose |
| 3:1 | Square 4x4 or Round 4.5mm | 3:1 ,Square 4x4 or 5x5 or round 4.5mm |
| 3:1 | Thumb cutting square 4x4 | 3:1 ,thumb cut square 4x4 or 5x5 |
| 2:1 | Square 5x5 or 6x6 | 3:1 ,Square 5x5 or 6x6 |
| 2:1 | Round hole 6mm | 2:1 ,round hole 6mm |
| 3:1 | Oval : 4x3 | 3:1 ,Oval 4x3 |
(Many size punching tool could be choose )
3:1 pitch ,Square or round hole
2:1 pitch ,Square or round hole Optional choose
Or we aceept customer provide Holes size OEM.
Details depend your productions .
